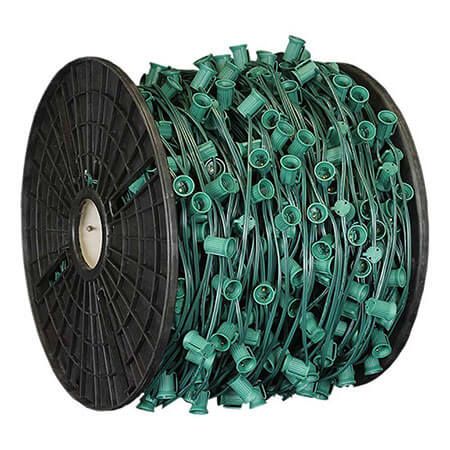

C9 6" Light Line - 1000' Bulk Spool - Empty Socket Light Line - Green Wire
• Socket Type: C9 (E17)
• String Length: 1,000'
• Number of Sockets: 2000
• Socket Spacing: 6"
• Quality Grade: Commercial
• Wire Type: SPT-1 - .03 inch insulation thickness
• Wire Gauge: 18
• Voltage: 110/120
• Usage: Indoor/Outdoor
• Case Quantity: 1
• Case Weight: 47 lbs.
Â
Â
Plugs sold separately - (18/2 Male Slide On - SPT-1 and 18/2 Female Slide On - SPT-1)
Maximum bulb load:
250 (C9) LED Retrofit bulbs or 250 feet of line, whichever comes first
100 (C9) 7-watt incandescent bulbs
70 (C9) 10-watt incandescent bulbs
Maximum amperage for 18/2 gauge wire*:
Up to 50 feet= 10 amps
51-100 feet= 7 amps
101-150 feet= 5 amps
151-200 feet= 3.5 amps
201-250 feet= 2.5 amps
*= Maximum amperage is the same for SPT1/SPT2
Â
Frequently Asked Questions
I only need a few hundred feet of light line, do I have to buy a whole spool?
We do sell our Light Line by 50' and 100' sections. Please see our 50' and 100' Sections product listings.
Once I install my male plug at the begining of the cord and then cut the cord to the desired length, what do I do with the end of the cord that has no end connector?
Some people simply fold the cord over into a small, 1" loop and then wrap electrical tape around it, however, we generally recommend using a female slide on plug for a safer and cleaner look.
