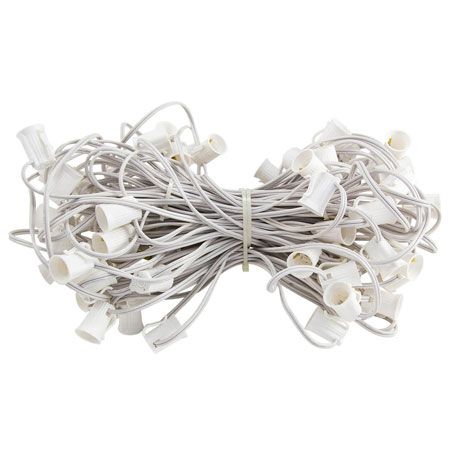

C9 Cord, 24" Spacing, White Wire, SPT-1, 100'

Out of stock
SKU
LL-C91-24100-W-Y
$42.00
C9 empty socket lines are a great choice to create customized light sets that you can use for those special moments in your life. As the top seller among our pro installers and with endless possibilities, you can create unique light sets with colors that celebrate your anniversary, engagement, baby... Read more
  • 1-2 $42.00
  • 3-4 $36.80
  • 5-9 $34.70
  • 10+ $32.60

C9 Cord, 24" Spacing, White Wire, SPT-1, 100'

  • • Socket Type: C9
  • • Professional/Commercial Grade
  • • Length: 100'
  • • Number of Sockets: 50
  • • Socket Spacing: 24"
  • • Rating: SPT-1 - .03 inch insulation thickness
  • • Wire Gauge: 18
  • • Voltage:  110/120
  • • Usage: Indoor/Outdoor


Electrical Cord Maximum Amperage Loads

Plugs sold separately - (18/2 Male Slide On - SPT-1 and 18/2 Female Slide On - SPT-1)

Maximum bulb load:

  • 250 (C9) LED Retrofit bulbs or 250 feet of line, whichever comes first
  • 100 (C9) 7-watt incandescent bulbs
  • 70 (C9) 10-watt incandescent bulbs

Maximum amperage for 18/2 gauge wire:

  • Up to 50 feet= 10 amps
  • 51-100 feet= 7 amps
  • 101-150 feet= 5 amps
  • 151-200 feet= 3.5 amps*
  • 201-250 feet= 2.5 amps*

*= Only used for C7/C9 perimeter lighting applications



Frequently Asked Questions

Once I install my male plug at the begining of the cord and then cut the cord to the desired length, what do I do with the end of the cord that has no end connector?

Some people simply fold the cord over into a small, 1" loop and then wrap electrical tape around it, however, we generally recommend using a female slide on plug for a safer and cleaner look.
